Deploy Firezone on Azure with Terraform

In this guide, we'll deploy a cluster of Firezone Gateways in a private subnet on Azure that are configured to egress traffic to the internet through an Azure NAT Gateway.

Common use cases

Use this guide to give your Firezone Clients a static, public IP address for egress traffic to particular Resource(s). Here are some common use cases for this example:

  • Access your protected Azure workloads using with scalable, high-performance WireGuard tunnels.
  • Use an IP allowlist to access a third-party or partner application such as a client's DB or third-party API.
  • Use an IP allowlist with your identity provider to lock down access to a public application.
  • Enabling a team of remote contractors access to a regionally-locked application or service.

High availability

All Firezone Gateways deployed in this example will automatically failover and load balance for each other.

Prerequisites

  1. Terraform
  2. Azure account with the necessary permissions to create the resources.
  3. Set up your Terraform environment to work with Azure. See this tutorial if you haven't yet done so.
  4. A Firezone Site dedicated to use for this example. This Site should contain only the Firezone Gateway(s) deployed in this example and any associated Resources.
  5. A Firezone Gateway token. This can be obtained by viewing your Site in the admin portal, clicking the Deploy Gateway button, and navigating to the instructions for the Azure tab. Gateway tokens support multi-use, so only a single token is needed to provision the Firezone Gateways in this guide.

Sizing

Simply update the number of desired_capacity to deploy more or fewer Firezone Gateways. There's no limit to the number of Firezone Gateways you can deploy in a single Vnet. A basic Azure Autoscale configuration is provisioned as part of the linked module.

If you need more than 64,512 concurrent connections, you can increase the number of public IP addresses reserved for the Azure NAT Gateway. See Azure's documentation for more information.

We've tested with Standard_B1ls instances which still work quite well for most applications. However, you may want to consider a larger instance type if you have a high volume of traffic or lots of concurrent connections. See Gateway sizing recommendations for some general guidelines depending on your expected traffic.

Deployment

  1. Download the main.tf from the example module.
  2. Customize it as desired. At a minimum, you will need to set the firezone_token and change admin_ssh_key to match your environment.
  3. Run terraform init to initialize the working directory and download the required providers.
  4. Run terraform apply to deploy the Firezone Gateway(s) into your AWS project.

You can see the IP address assigned to the NAT Gateway in the Terraform output. These are the IP address that your Firezone Gateway(s) will share to egress traffic.

Firezone Gateways in the Azure portal

It can take a few minutes for the Firezone Gateway(s) to provision and connect to the portal. If you suspect the Gateway(s) are not connecting, follow the instructions in the troubleshooting guide to diagnose the issue.

Azure disables ICMP for VMs without a public IP attached, so you won't be able to ping internet hosts from the Firezone Gateway(s) or vice versa. This is normal and expected. TCP and UDP traffic will work as expected using the example configuration in this guide.

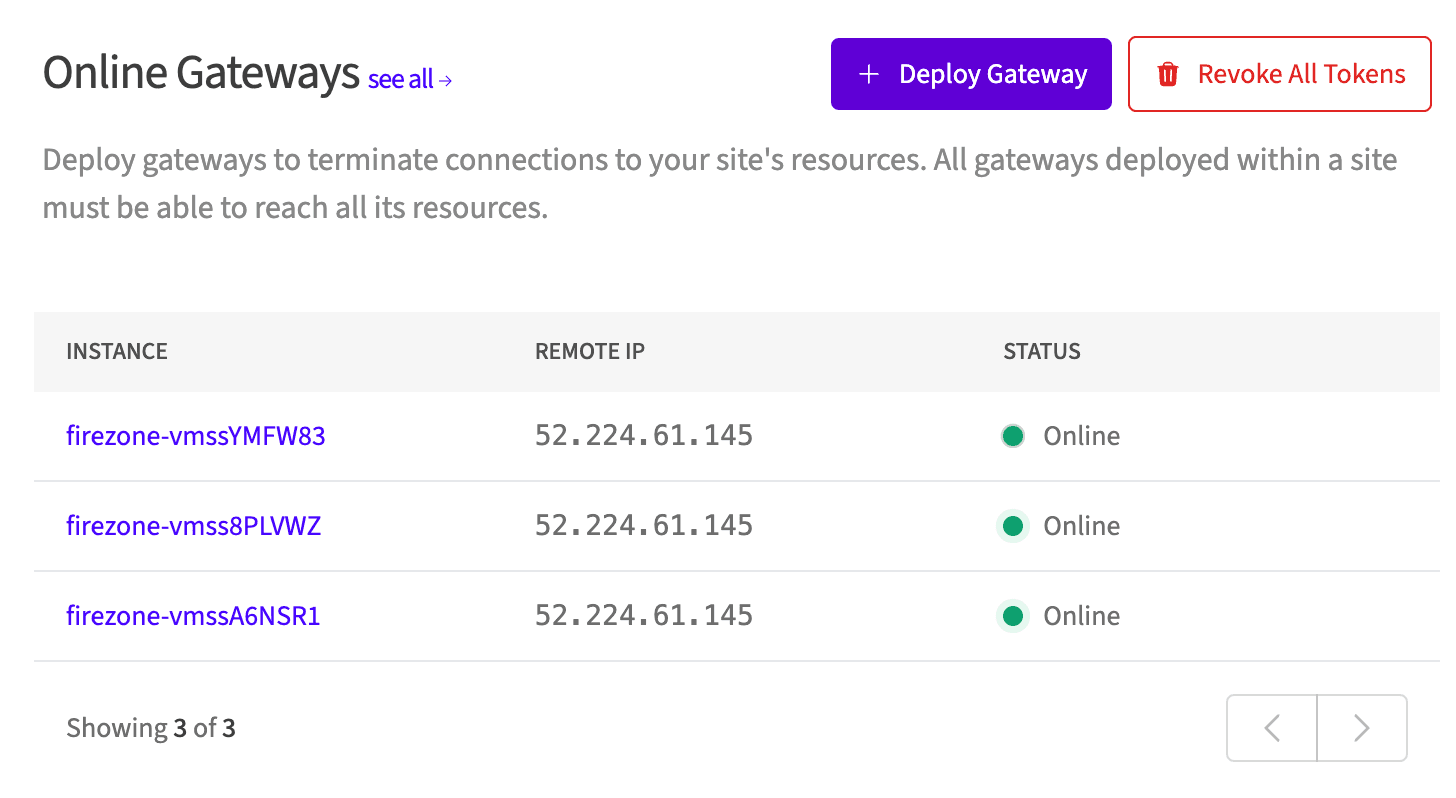

After a few minutes, you should see the Firezone Gateway(s) appear in the Firezone admin portal. You can now configure your Resources to use the new Firezone Gateway(s) you just provisioned.

Upgrading

To upgrade the Firezone Gateway(s) to the latest version, we recommend setting a version to deploy with the firezone_version variable. Then, whenever you want to upgrade, update this variable and run terraform apply, which will trigger a new deployment of the Firezone Gateway(s) with the new version.

You can follow the latest releases of the Gateway at our changelog page.

This will incur a few minutes of downtime as Terraform destroys the existing Firezone Gateway(s) and deploys new ones in their place.

Output

nat_public_ip will contain the public IP address of the NAT Gateway you can use to whitelist your Firezone Gateway(s) in your third-party or partner application.

Cleanup

To clean up the resources created by this example, run terraform destroy.
